Our project for SEES 2024 was "Creating a Model to Identify High-Risk Areas for Flash Flooding in Houston, Texas." In this blog, I will discuss how we calculated which areas are "high-risk."

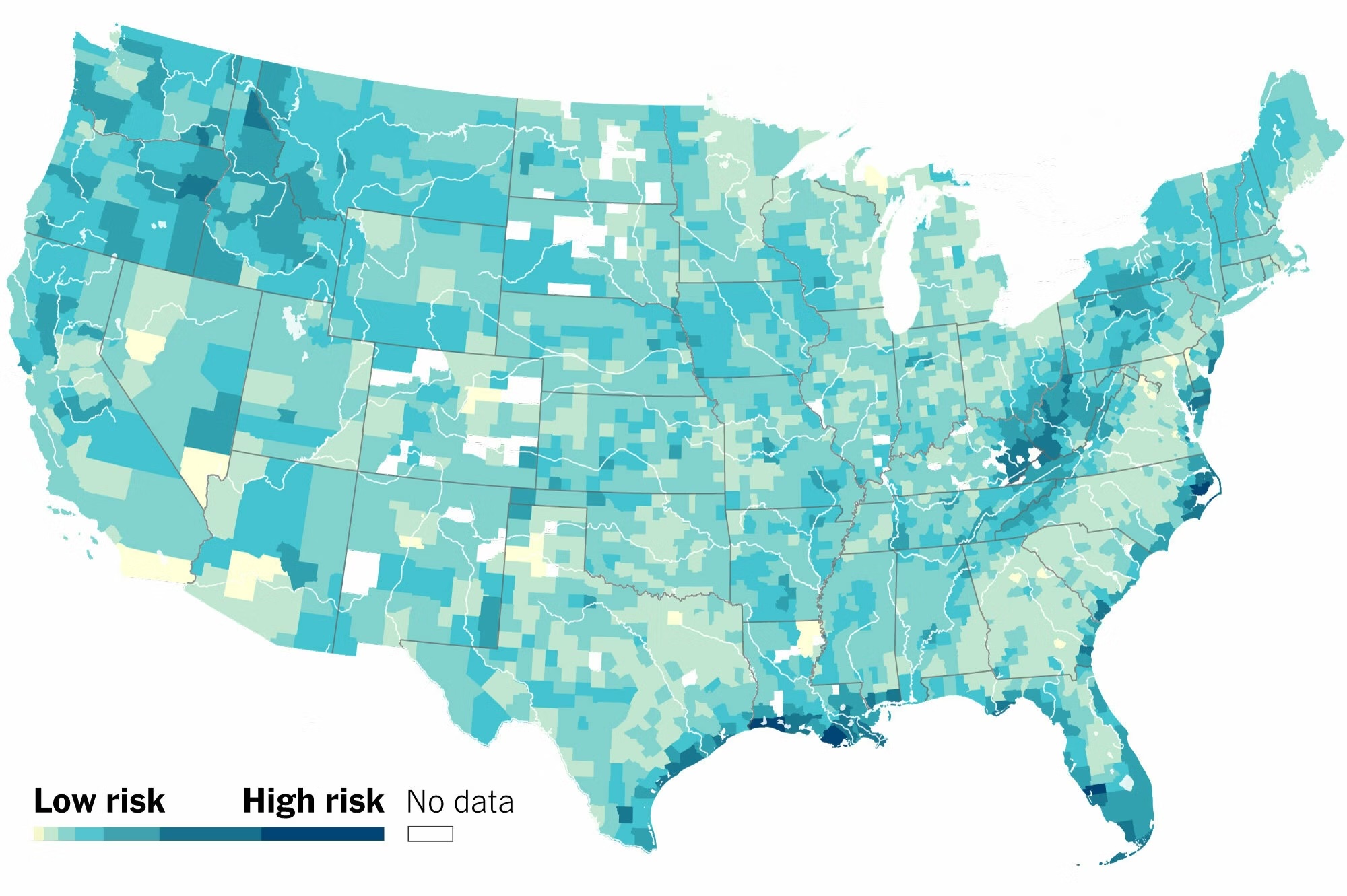

There are many ways to identify the most at-risk points of flooding in a given region. Such points are commonly identified in a flood map, such as the one here:

For our project, we decided to look at elevation data, which is perhaps the most intuitive: water flows downhill and will accumulate in the lowest regions. To get our elevation data, we used opentopography.org, which has free global elevation data with a minimum of 10m accuracy. On the website, we used the "select a region" feature to isolate specific Houston AOIs and download the elevation data in a .TIF file.

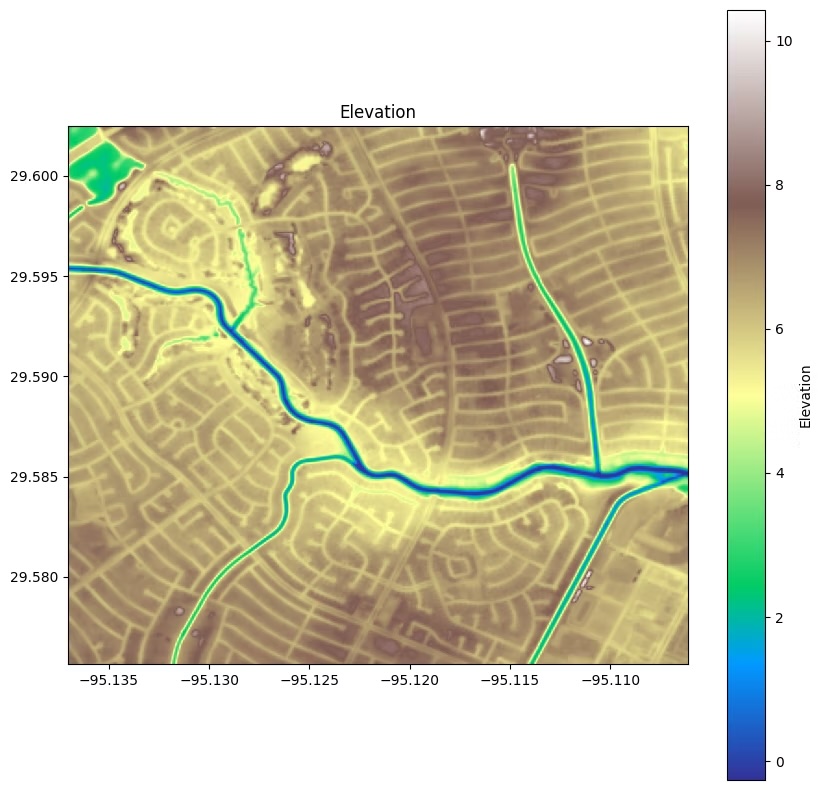

The .TIF files contain what is called an "elevation raster." This is a two-dimensional grid made of longitude and latitude coordinates, and it has an elevation value at each point. Here is an example (AOI #3, Houston) where the elevations are represented by color:

We need to convert our raw elevation data into a flood map. To do this, we perform something called D8 flow analysis. This is an algorithm that takes an elevation raster (input) and converts it to a direction raster (output) through the following process:

1. At each point or "cell" within the elevation raster, find the adjacent cell (of 8) with the steepest descent from the original cell (the lowest neighbor).
2. Assign the original cell a new value from 1-255 based on the direction to the lowest neighbor, with 1 being east, 2 being southeast, and going counter-clockwise around doubling each time until we get 128 for northeast.

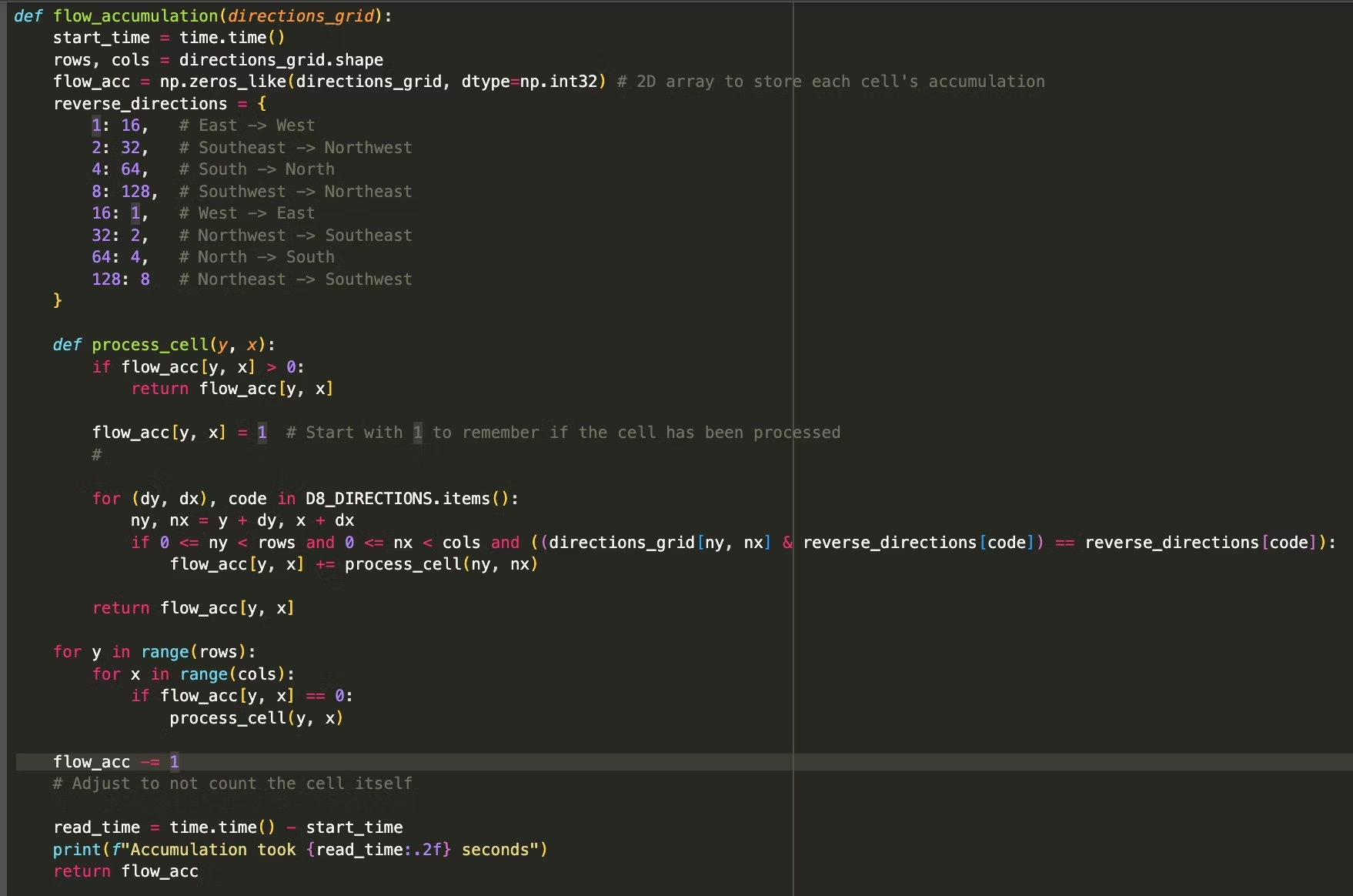

This new direction raster tells us how water flows at each point. Using the following code, we programmed a third raster that indicates, at each cell, how many other cells contribute flow into the cell:

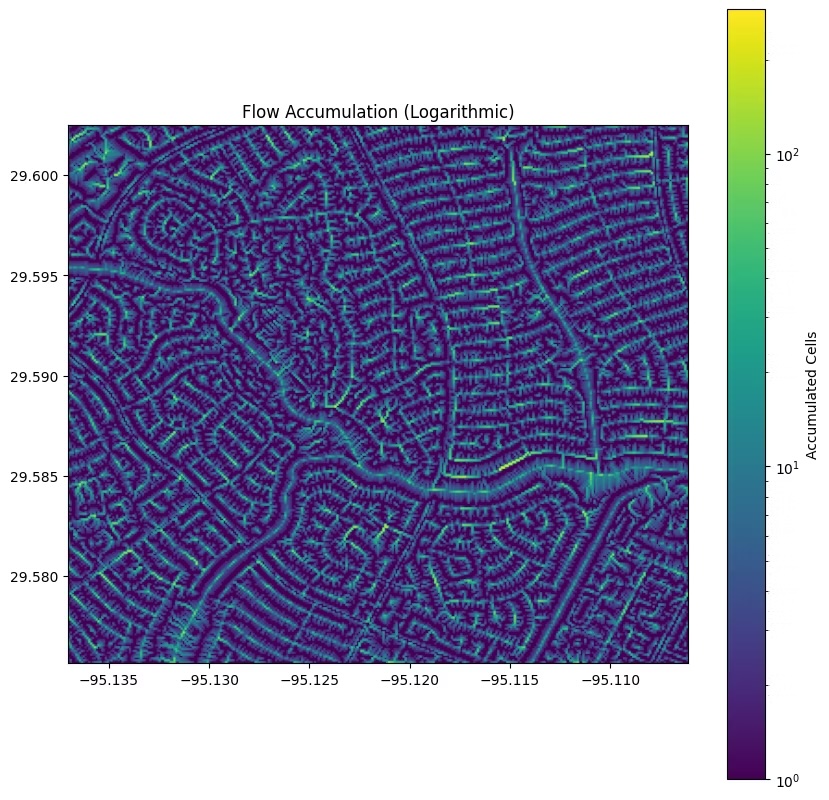

Finally, we achieved this result for AOI #3:

We can see that water will pool in the streets, which makes sense due to their lower elevation.

For a more detailed explanation, check out ArcGIS's D8 flow accumulation tool: https://pro.arcgis.com/en/pro-app/latest/tool-reference/raster-analysis/flow-direction.htm

Also, here is our GitHub for the full implementation: https://github.com/dsk2025/SEES-2024-Flooding-Model
